Product Details

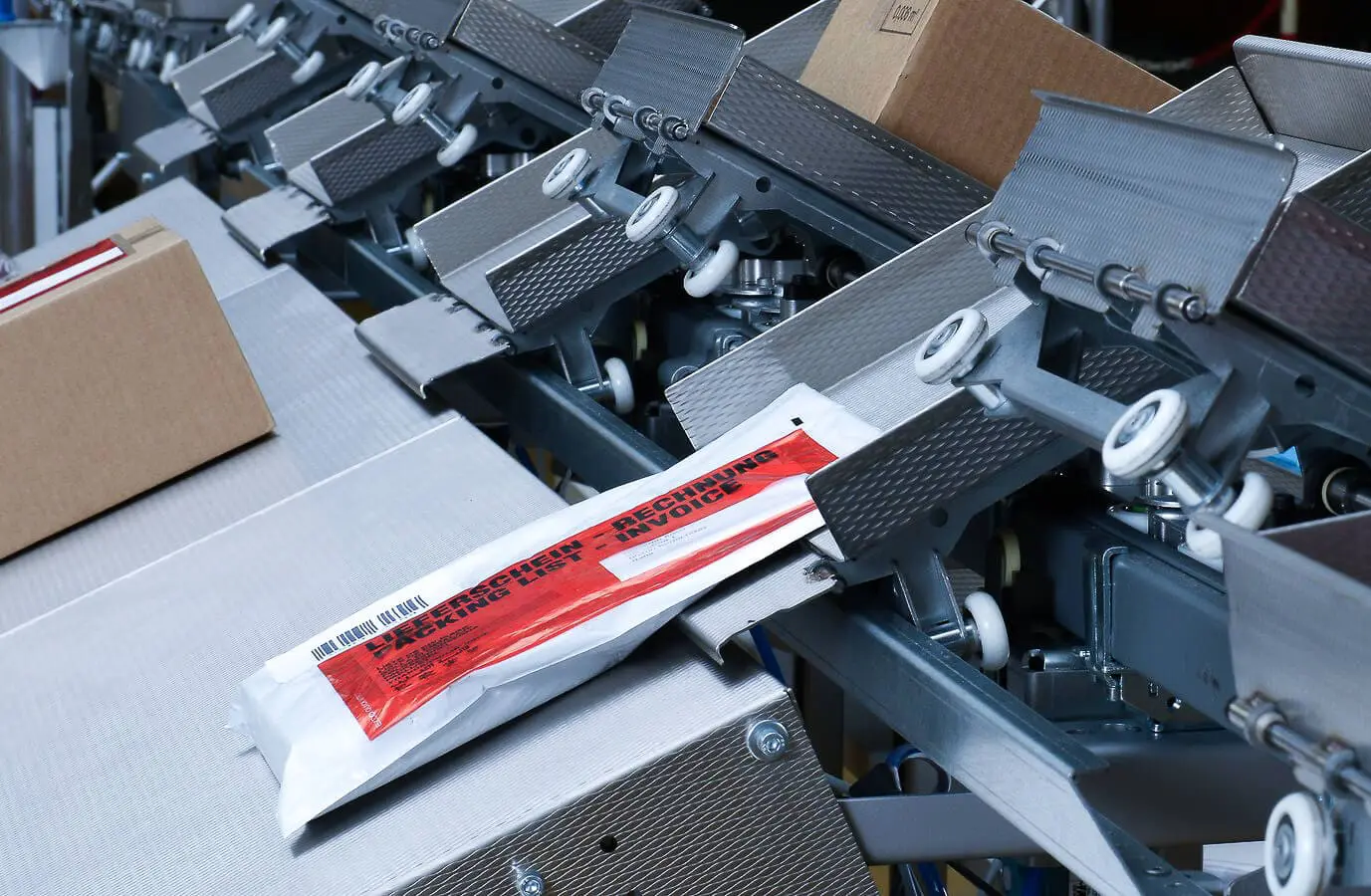

ferag.denisort is an innovative tilt-tray sorter that combines conveying, order picking and sorting in one seamless and scalable system with universal applications across a wide range of intralogistics processes. The basis is a carrier chain that runs energy-efficiently and quietly on low-friction rollers in a steel profile. The system thus enables individual solutions with a completely free layout in all dimensions, even across several levels.
- Order picking for e-commerce, retail, B2B and 3PL
- Sorting for dispatch, restmail, incoming goods and returns
- Extending process chains with no need for transfer points
- Conveying, sorting and order picking in one system
- Also ideal for bulky, light, round or sensitive products

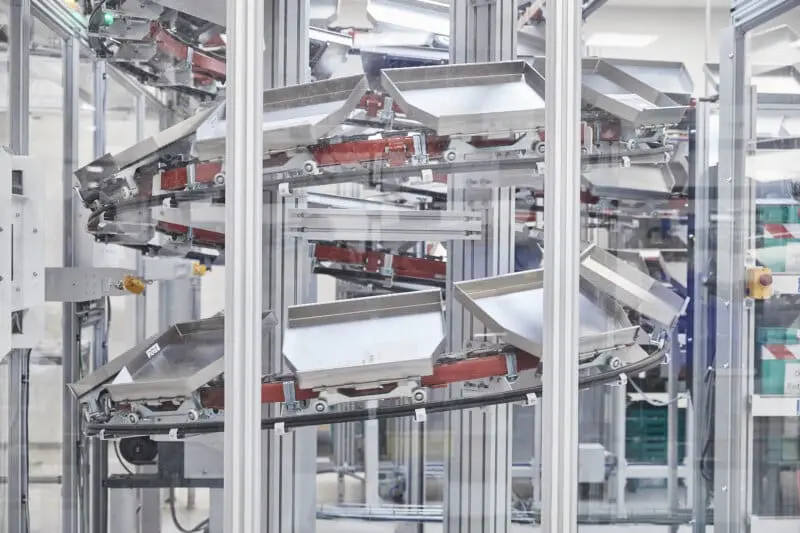

- 3D capability, also across several levels
- Multilevel for maximum capacity in the tightest of spaces
- Modular and extensible design
- Energy-efficient technology thanks to rolling friction
- Proven and robust engineering
- Cost-effective in operation, service and maintenance
- Low-noise
- Automatic or manual tray loading
- Identification by barcode, RFID, 2D code, RFID and OCR
- Customised chutes
- Material flow controller (MFC) and visualisation
- Interfaces to WMS, WCS and peripheral systems
| Capacity | up to 8’400 trays/h |
| Speed | up to 1.4 m/s |
| Tray sizes | 650 x 450 mm / 650 x 500 mm / 650 x 1060 mm (double tray) |
| Maximum loading | 30 kg |
| Curve radii | 1‘500 mm small tray, 2‘250 mm large & double tray |
| Inclination | up to 20° |
