Product Details
With the continuous and seamless conveying system easychain, even narrower curve radii can be realized than with the „bigger brother“ deniway. This is particularly noticeable when complex, three-dimensional layouts are required. In addition, the highly modular system can be quickly installed and converted. The system is based on rollers that reduce friction and thus both energy consumption and wear. That is why easychain is robust, reliable and largely maintenance-free.
- Linkages between production processes
- End-of-line processes
- Transport of SLC
- Conveying, sorting and distributing in one system
- 3D-capable for optimum space utilisation
- Material flow over long distances with no transfer points
- Modular and extensible design
- Energy-efficient technology thanks to rolling friction
- Proven and reliable technology
- Cost-effective in operation, service and maintenance
- Low-noise
- Front-side infeed and discharge as well as pushers depending on the conveyed goods
- Identification by barcode or RFID
- Material flow controller (MFC)
- Interfaces to WMS, WCS and peripheral systems
| Product dimensions | max. 600x400x400mm / min. 20x20x20mm |
| Maximum conveying speed | 1.0 m/s |
| Maximum loading | 20 kg/m / 5 kg per plate |
| Installation weight | 10 kg per running meter |
| Conveying plate width | 300 mm |
| Chain/plate pitch | 85 mm |
| Curve radii | 750 mm |
| Installation | Elevation or suspension |
| Inclination | 7.25° |
| Spiral pitch | 600 mm per circuit |
| Spiral segmentation | every 90° |

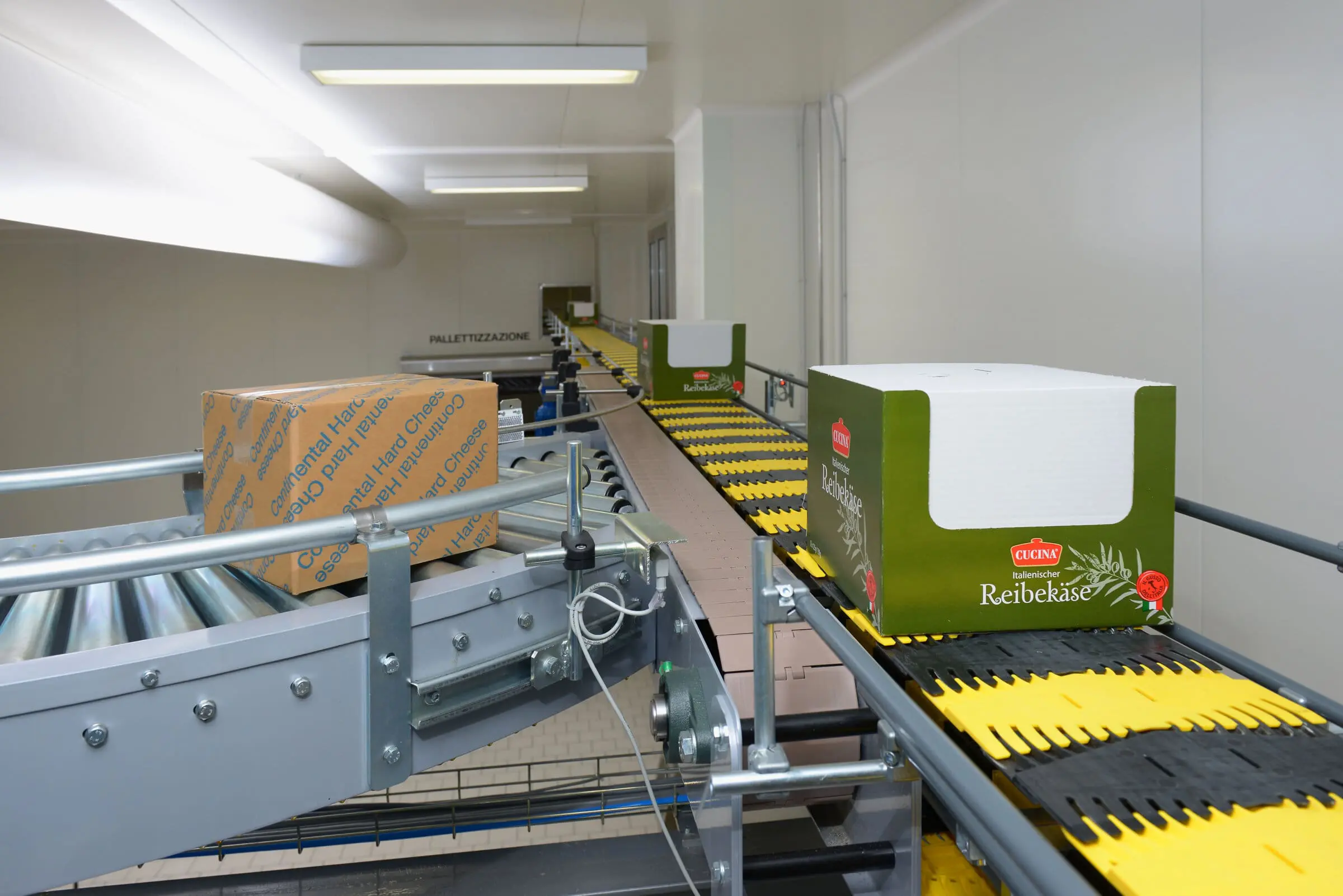

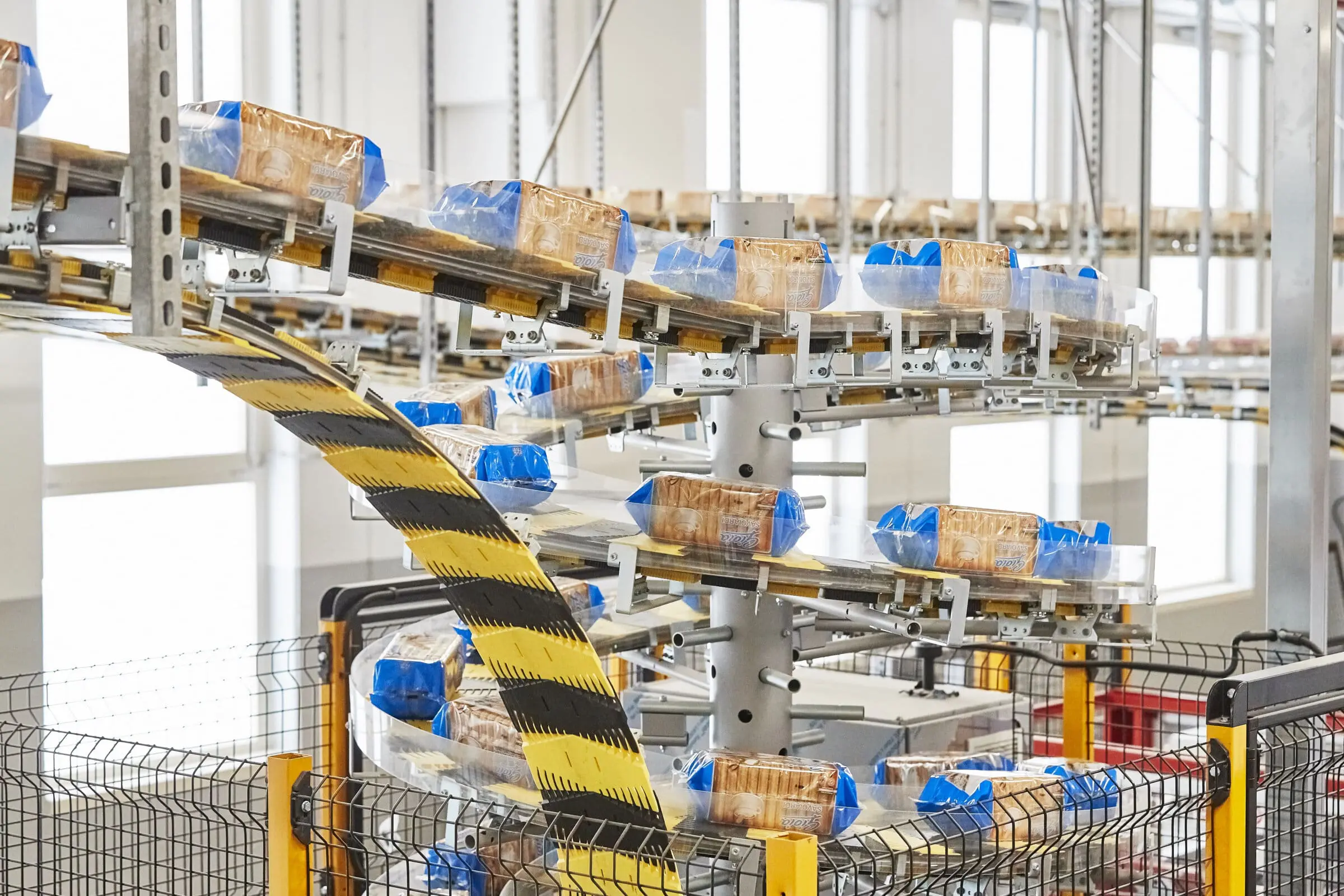

Impressions
Case studies
Case Study
Three kilometres of low-energy and low-maintenance conveyor for a large bakery in Italy
